Upgrading your Wizard x220 Part 2

Banggood promo

Georgi Yanev, 11 August 2018

Over time I have done a number of upgrades to my Wizard x220. So many in fact, it’s nowadays more of a custom build than a wizard and that’s half the fun. Here’s a few upgrades regarding soft mounting motors, thread locking the motor screws, removing motor guards and leds.

Let’s do this!

Remove motor guards

There’s not a whole lot to removing the motor guards. Just undo the 4 screws under the motor, lift up the motor and slide out the motor guards to the side. Do that for all 4 motors. While we are doing this, let’s do the other 3-4 tasks before we put the motors back on.

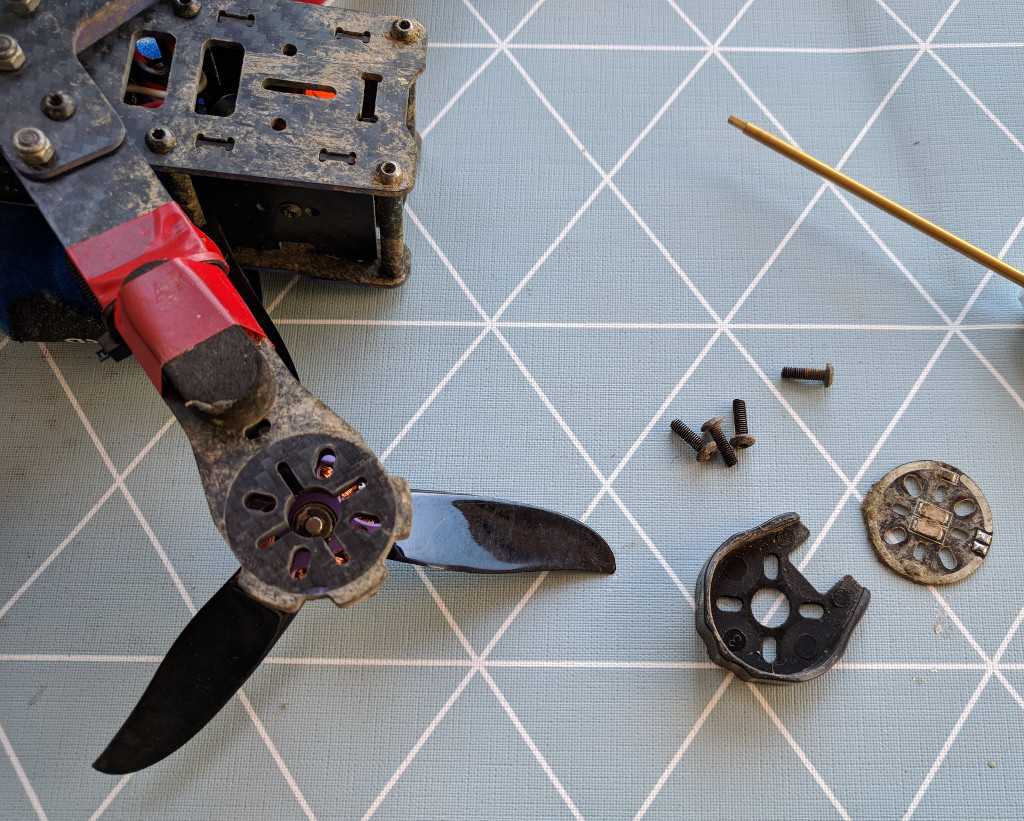

Remove motor guards from Wizard x220

Soft mount the motors

I’m using these silicone motor pads to do the soft mounting. Again this is rather straightforward - just position the pad between the frame and the motor, align it and screw it in place.

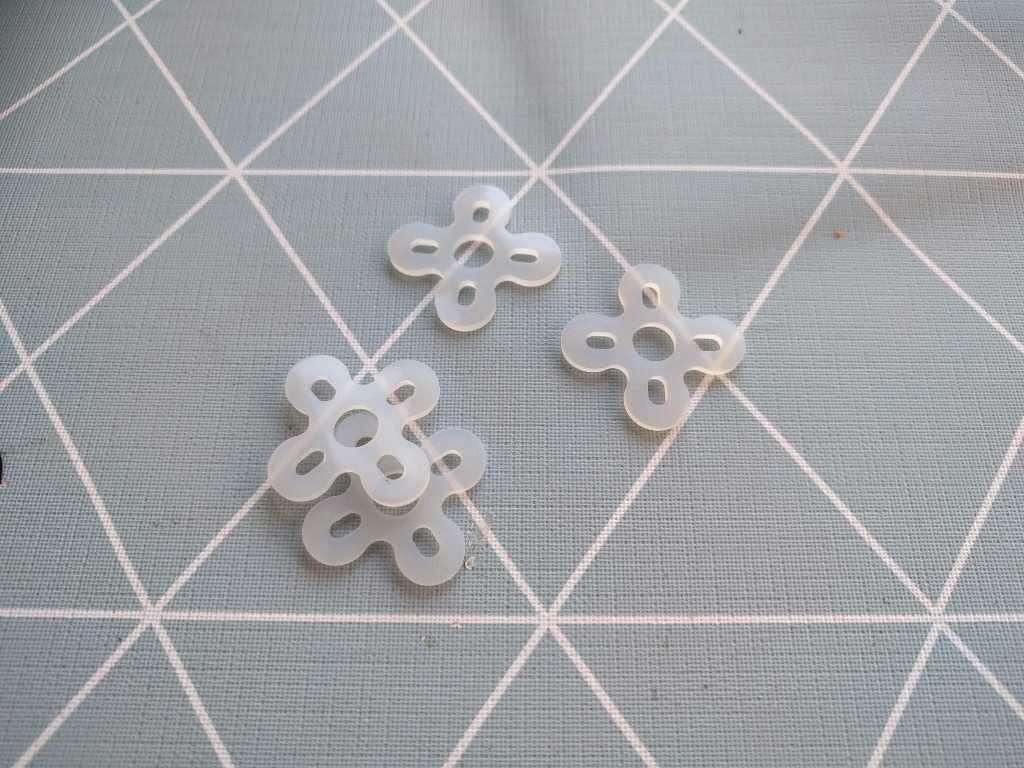

Silicone motor soft mounting pads

Here’s how it looks mounted.

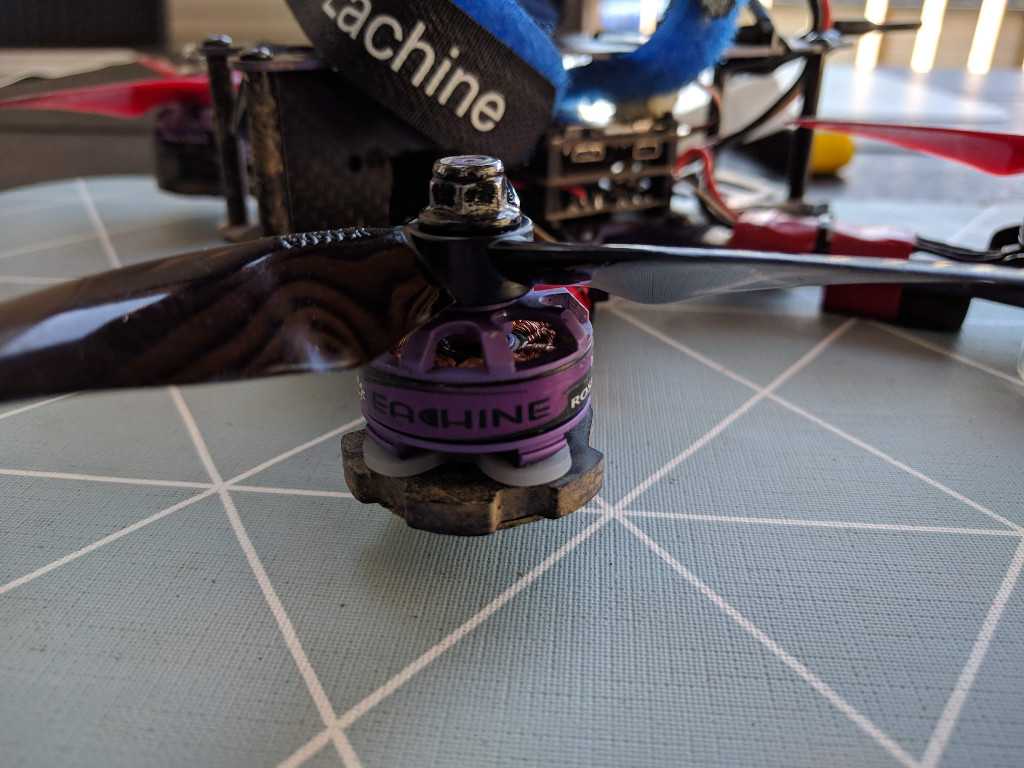

Soft mounted motors on Wizard x220

But while you are here, you might as well…

Thread lock your motor screws

Get your hands on some thread locker, for example this one.

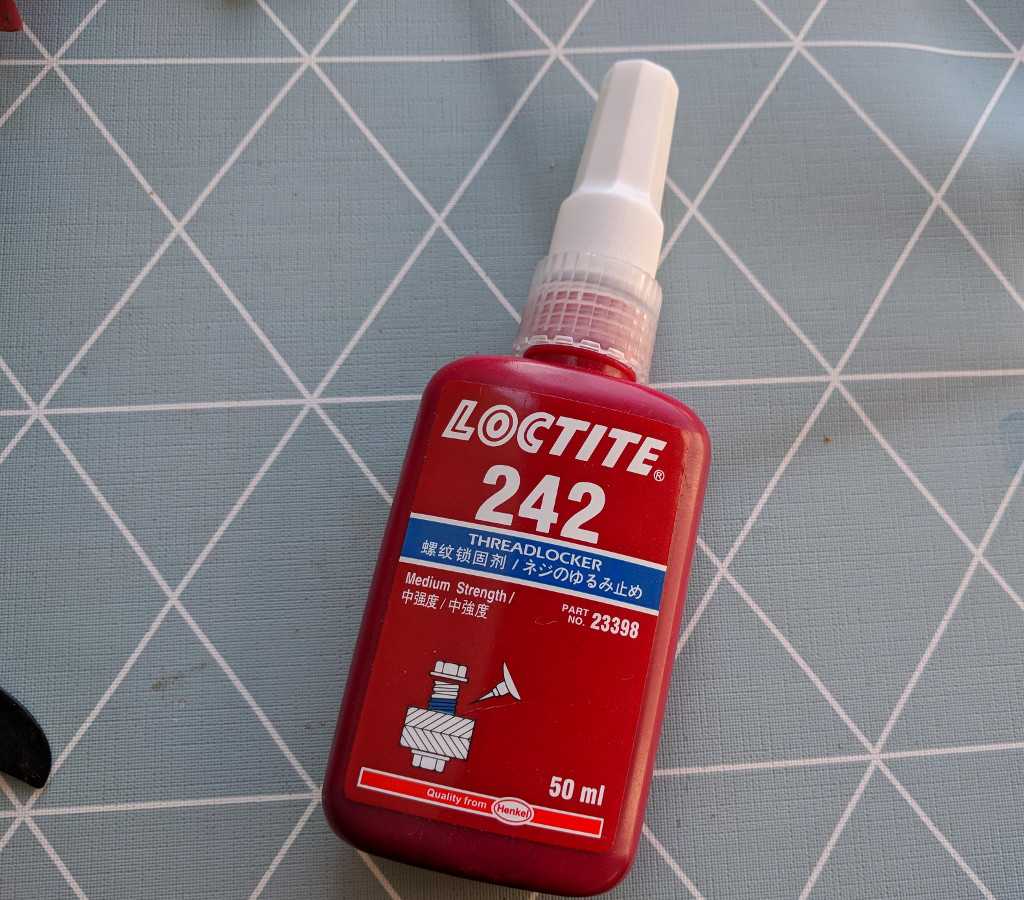

Loctite threadlocker bottle

Apply a little of it to each screw before screwing it in place. That’s all :)

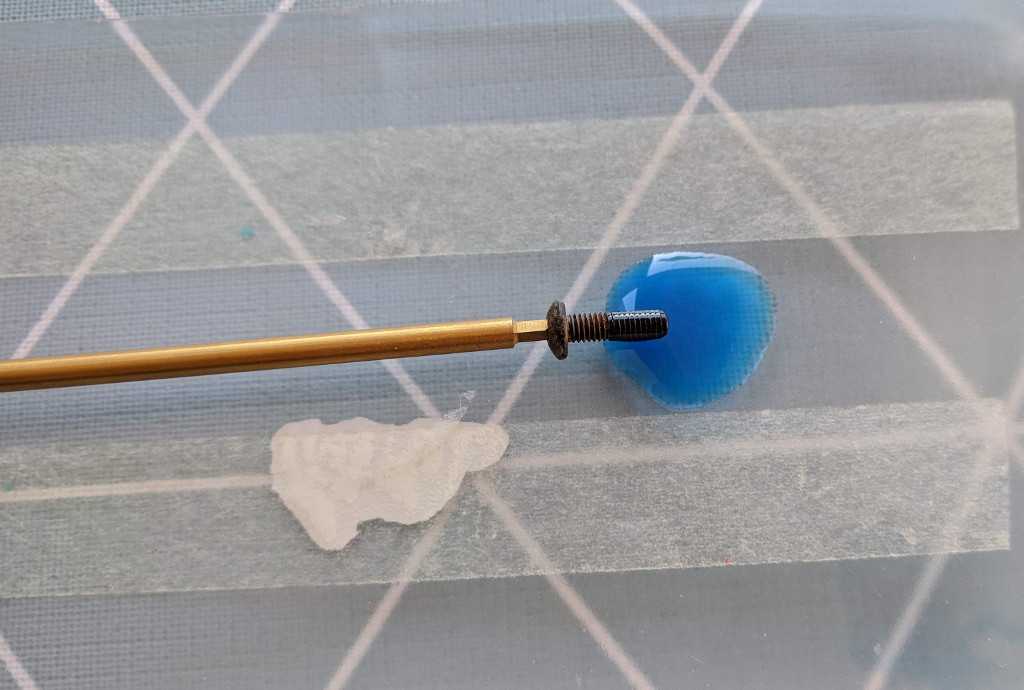

Loctite applied to screw

One bonus item you might want to consider before you put your screws in place is to:

Remove the leds

One other item requiring a bit more work is to remove the leds. There could be multiple reasons to want to do that, but this is in most cases not something necessary. I for one have no need of the leds, it reduces the wire clutter drastically under the flight controller (-8 wires), frees some pads on the power distribution board (PDB). Here’s how to do it.

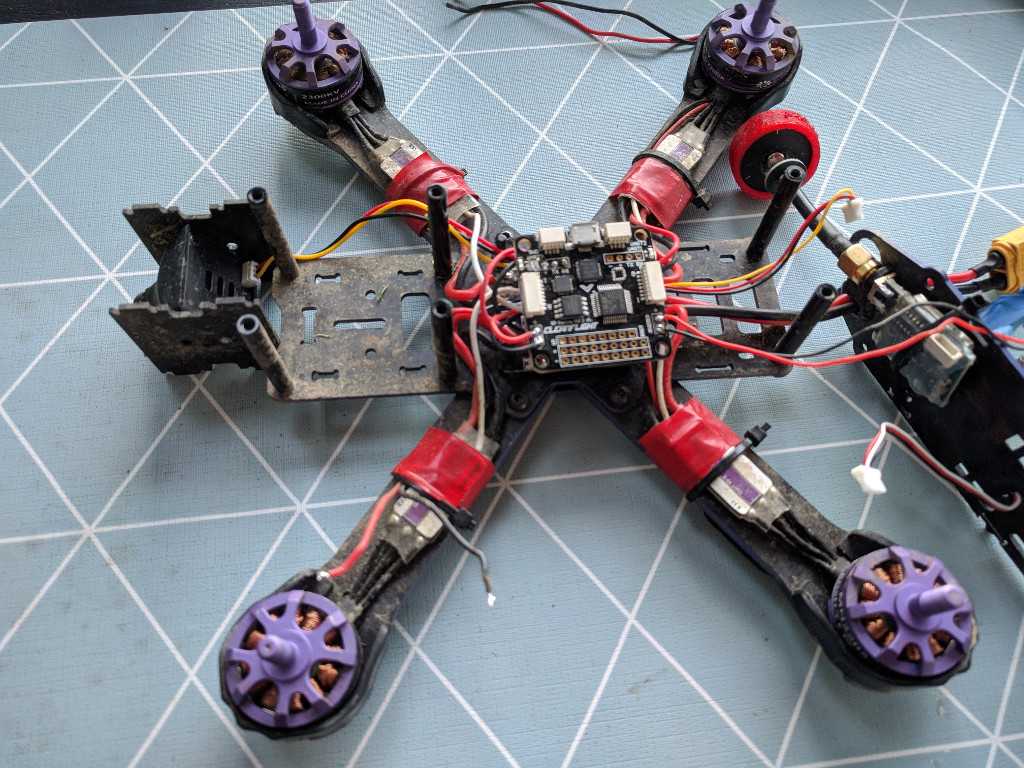

  • desolder wires from the leds from under the motor

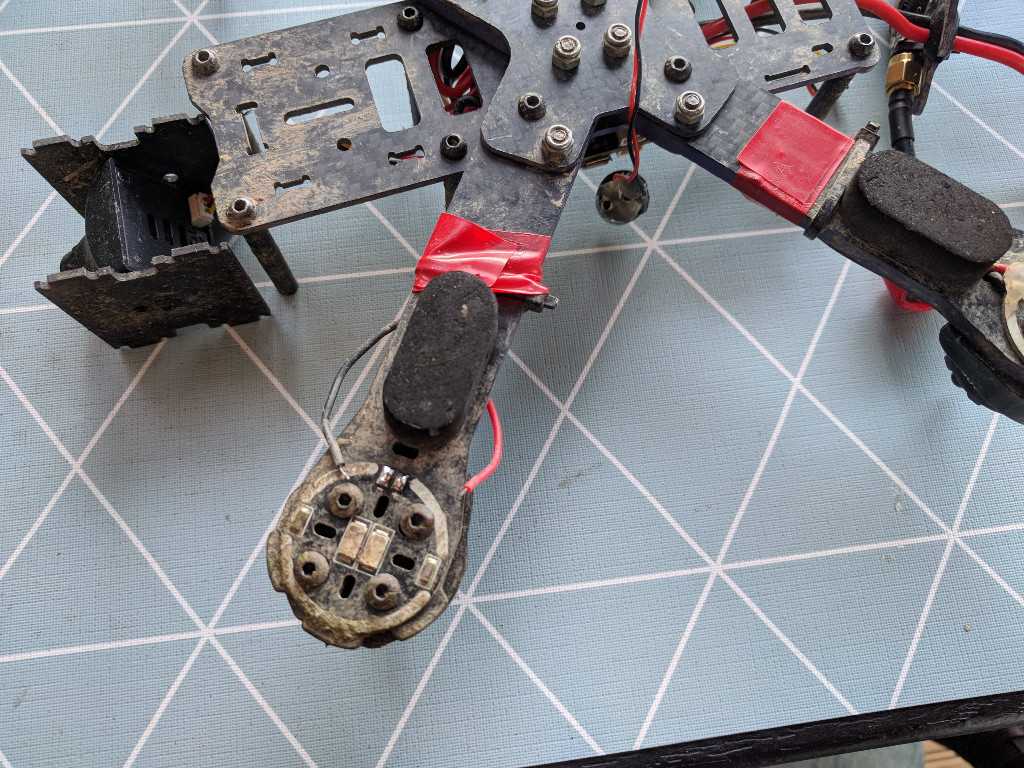

Desolder wizard x220 leds

  • pull them carefully through the whole from the top of the frame arm

Pull led wires up

  • desolder the wires from the PDB

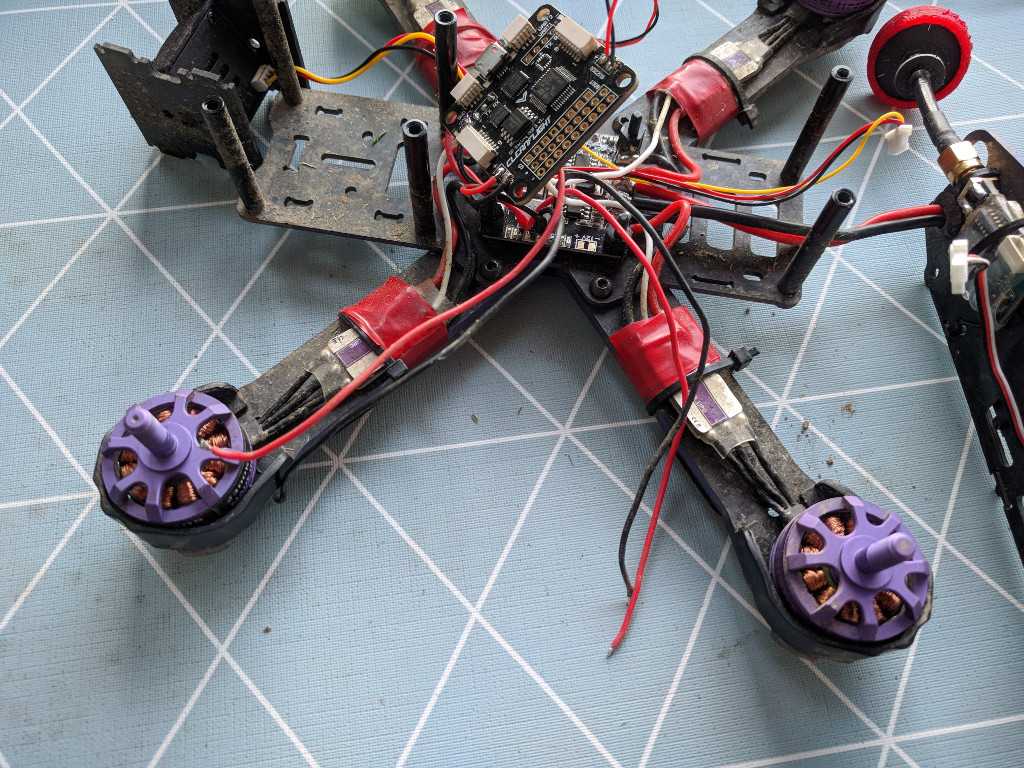

All led wires loose

Alternatively you can use wire cutter to carefully cut the wire at the base without having to desolder it. Do that for all 4 motors

And that’s all of it, put your quad back together and enjoy the upgrades! Happy flying!
